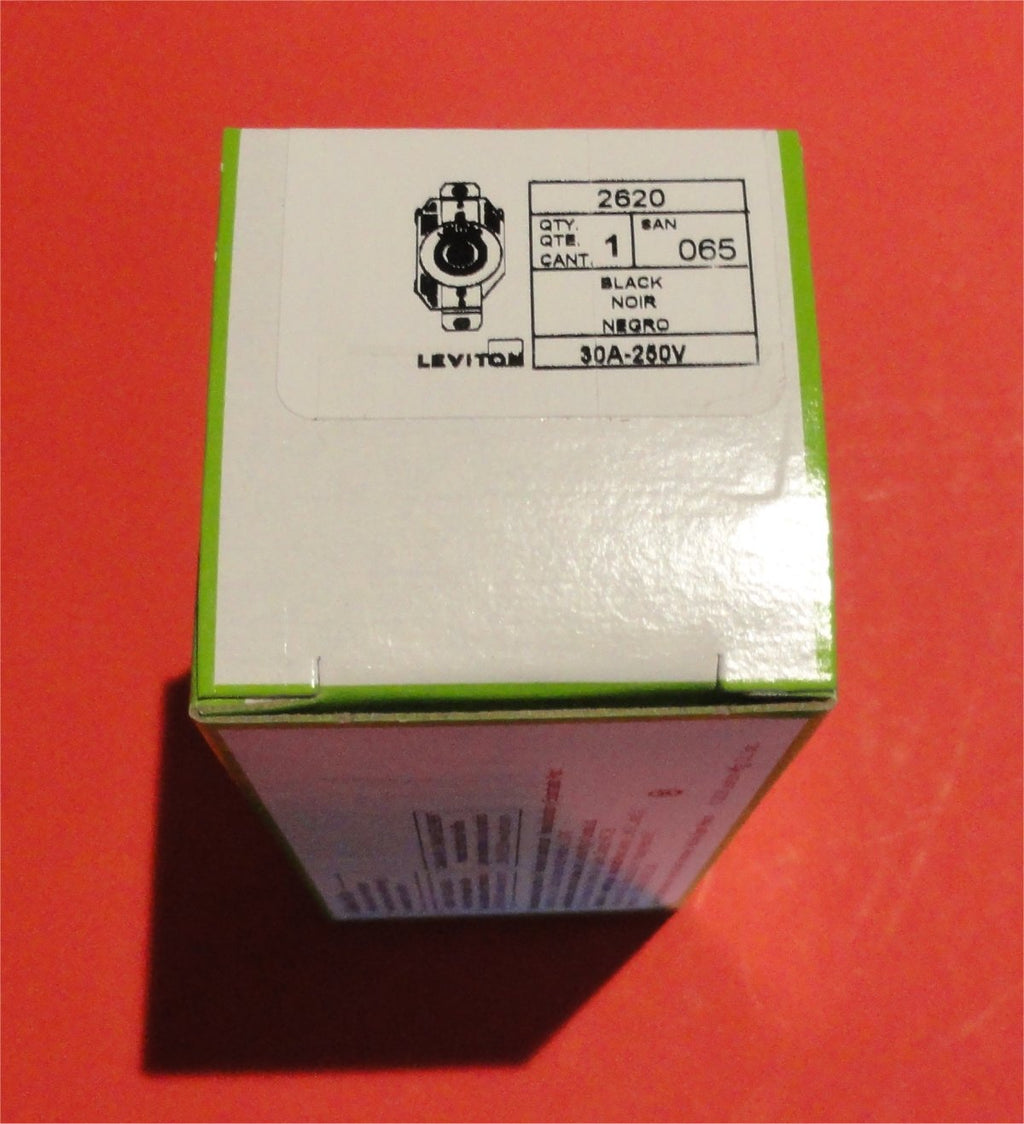

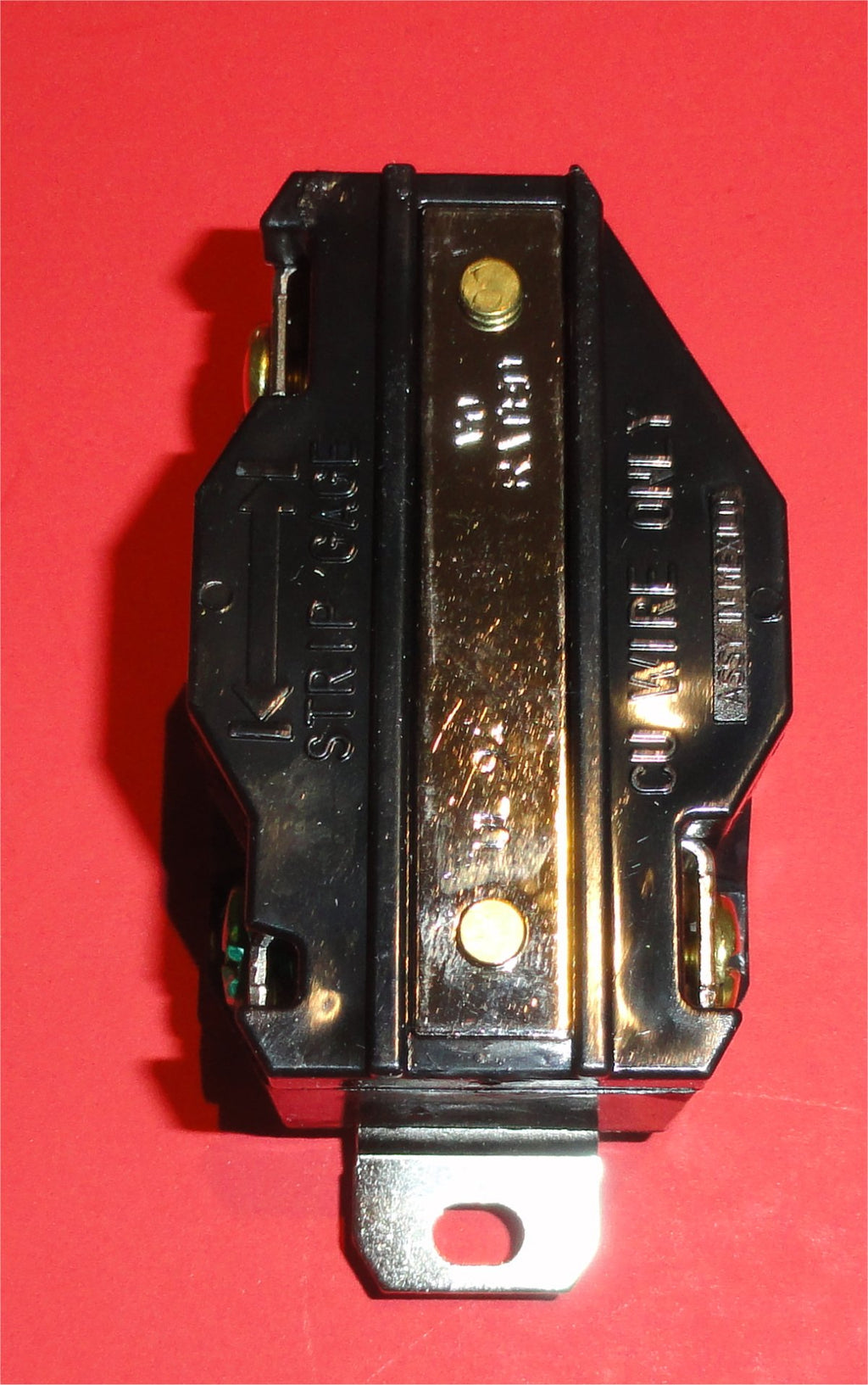

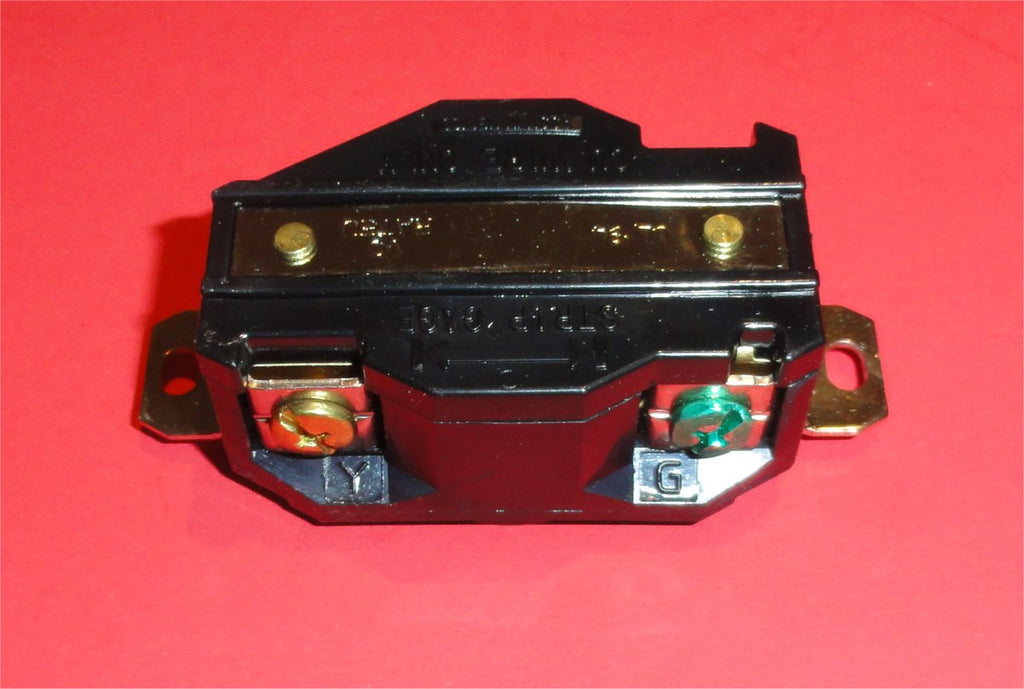

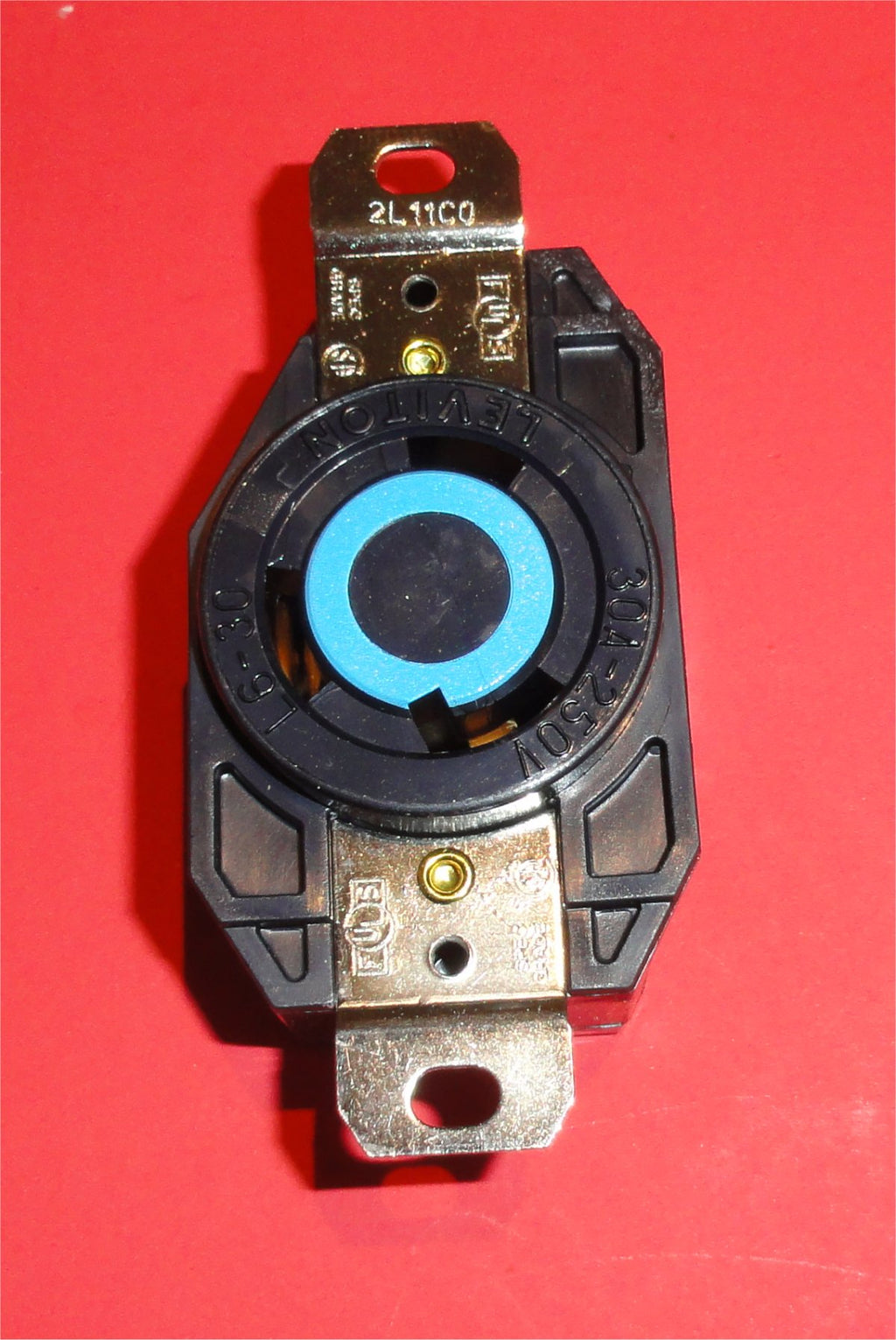

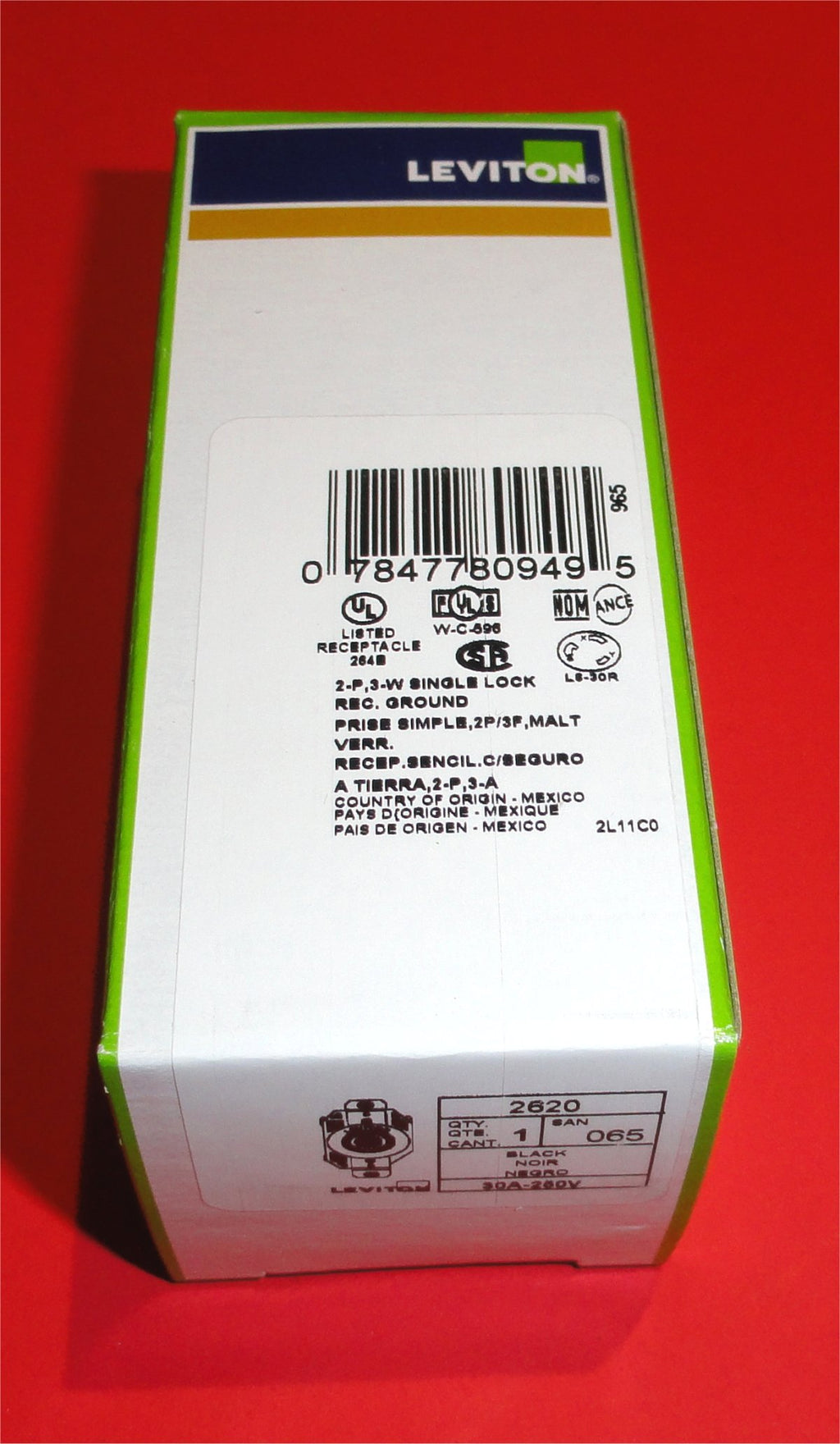

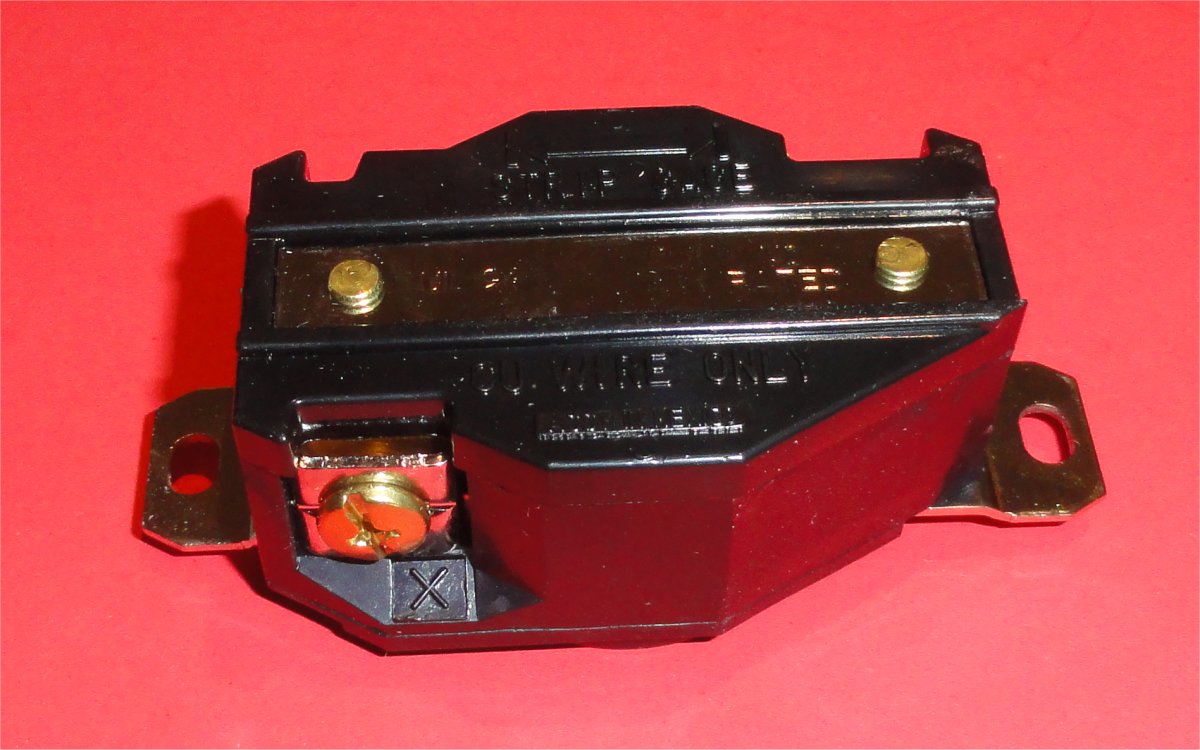

Leviton: 2620, 30 Amp, 250V, NEMA L6-30R, 2P, 3W, Flush Mtg Locking Receptacle

Available Pack Quantities

Pack Size Pack Price Per EA In Stock
1 EA $ 553.00$ 426.00 $ 426.00 / EA 182 packs
5 EA $ 2,665.00$ 2,050.00 $ 410.00 / EA 36 packs
10 EA $ 4,360.00$ 3,354.00 $ 335.40 / EA 18 packs
25 EA $ 10,962.00$ 8,432.00 $ 337.28 / EA 7 packs
50 EA $ 20,865.00$ 16,050.00 $ 321.00 / EA 3 packs
100 EA $ 40,551.00$ 31,194.00 $ 311.94 / EA 1 pack

Select a pack size above to add to cart. See return policy.

Leviton: 2620, 30 Amp, 250V, NEMA L6-30R, 2P, 3W, Flush Mtg Locking Receptacle

$ 311.94 – $ 426.00 per EA
avail. qty: 182 EA
Pack Quantity
🇺🇸 Bulk ordering is available for US customers only.
Contact us for international quotes.

30 Amp, 250 Volt, NEMA L6-30R, 2P, 3W, Flush Mtg Locking Receptacle

This item is approved for W-C-596 drawing.

AC Horsepower Ratings

  • At Rated Voltage: 2 HP

Electrical Specifications

  • Grounding: Grounding
  • Amperage: 30 Amp
  • Voltage: 250 Volt
  • NEMA: L6-30R
  • Pole: 2
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Current Limiting: Full Rated Current
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current

Environmental Specifications

  • Flammability: Rated V-0 per UL94
  • Operating Temperature: -40C to 60C

Material Specifications

  • Face Material: Ultramid
  • Base Material: Valox
  • Line Contacts: Brass .040 Thick
  • Terminal Screws: Brass 10-32
  • Grounding Screw: Brass 8-32
  • Body Material: Nylon
  • Cover Material: Valox 357
  • Line Contacts: Brass
  • Terminal Screws: Chromated Brass
  • Grounding Screw: Chromated Brass
  • Strap Material: Nickel-Plated Brass
  • Color: Black
  • Terminal Clamps: Nickel-Plated Brass
  • Ground Contacts: Brass

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, White-Neutral
  • Terminal ID: Marked on Device
  • Terminal Accom.: 14-8 AWG
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Termination: Back & Side

Product Features

  • Face Material: Ultramid
  • NEMA: L6-30R
  • Base Material: Valox
  • Color: Black
  • Warranty: Lifetime Warranty

Standards and Certifications

  • NEMA: WD-6
  • NEMA: WD-1 & WD-6
  • ANSI: C-73
  • UL Fed Spec: W-C-596
  • NOM: 057
  • UL: 498
  • CSA: C22.2 No. 42
